The MetroLED Lighting System. Click, Twist, Play.
LED lighting systems have traditionally been the poor relation to fiber optics when it comes to illuminating objects and artefacts. Poor maintainability combined with light output over which you never felt you had full control have led to the generally superior fiber optic systems taking an overwhelming lead in the display lighting sector.
Until now. Now everything changes.
Universal Fiber Optics are proud to introduce you to MetroLED.
- Simple - even a child can build it
- Powerful - high powered LED's with both spotlight and linear options
- Controllable - dual channel dimming system
- Modular - it can be assembled in countless configurations
- Maintainable - if one LED reaches end of life, replace only that module
MetroLED really does offer all the above and much more, in a discreet, affordable package which can be rebuilt and reconfigured as often as your displays require it.
MetroLED allows you to change your lighting as often as you change your exhibits.
- Need to replace a long linear wash with individual spotlights? No Problem.
- Need to change from a wide to a narrow light beam to focus on a more intricate object? No Problem.
- Need to mix and match between 3000K or 4000K color temperatures? No problem.
- Need to do all of the above at once? That's no problem either.
MetroLED - it really is child's play.
View | Download Datasheet
LED Specifications
| COMPONENT | VARIANT | NOMINAL POWER | WORKING CURRENT | NOTES |
|---|---|---|---|---|
| Spotlight | 3000K | 0.5W | 100mA | Available in spot and flood fitting |
| Spotlight | 4000K | 0.5W | 100mA | Available in spot and flood fitting |
| Linear Light 45mm | 3000K | 0.4W | 80mA | |
| Linear Light 45mm | 4000K | 0.4W | 80mA | |
| Linear Light 95mm | 3000K | 0.8W | 80mA | |
| Linear Light 95mm | 4000K | 0.8W | 80mA | |
| Linear Light 245mm | 3000K | 2.3W | 80mA | |
| Linear Light 245mm | 4000K | 2.3W | 80mA | |
| MetroLED Driver | Version 2 | N/A | Variable | Overload indication & shut down |
General Technical Specifications
| DESCRIPTION | DETAILS |
|---|---|
| Mains supply voltage | 100-240V AC, 50/60Hz |
| PSU output | 5V DC |
| Min. ambient temperature | 14°F (-10°C) |
| Max. ambient temperature | 113°F (45°C) |
| Power connection | 2.1 x 5.5 x 12mm |
| LED type/model | White light |
| LED linear CRI | 85 (typical) |
| LED linear color temperature | 3000K or 4000K |
| LED linear optical efficiency | 112 Lumen / W |
| LED linear current | 10mA |
| LED spot CRI | 95 (typical) |
| LED spot color temperature | 3000K or 4000K |
| LED spot optical efficiency | 66 Lumen / W |
| LED spot current | 100mA |
| LED life | 50,000 hours in ambient 77°F (25°C) |

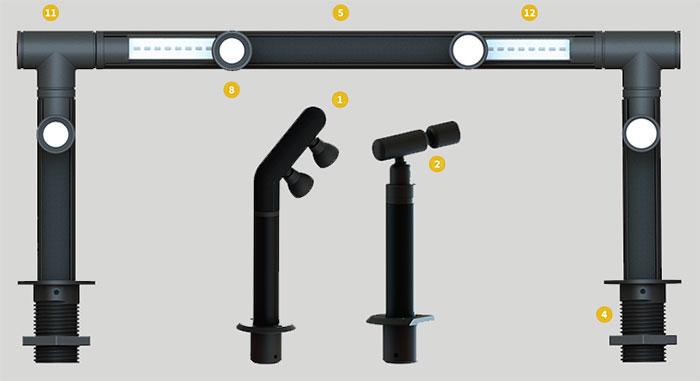

System Overview
System Components
 |
 |
 |

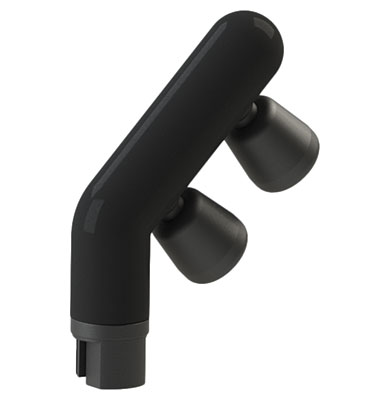

| 1. 45° Elbow Part: MTL-EB |
2. Driver and Dimmer Part: MTL-D4 or MTL-D7 |

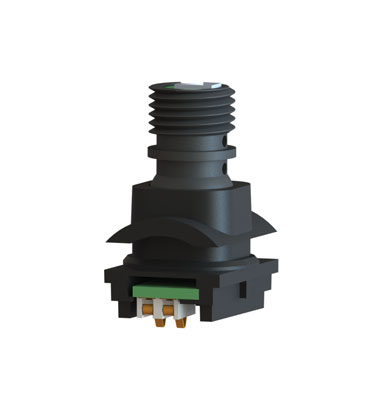

3. Twistlock Spot Fitting Part: MTL-SL-3K or MTL-SL-4K |
 |
 |
 |
| 4. Mounting Feet Part: MTL-MF / RT / RS / CT |

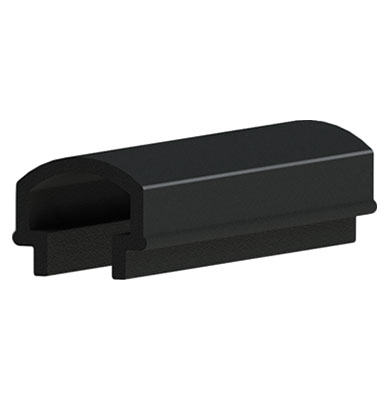

5. Spare Infill Part: MTL-EB |

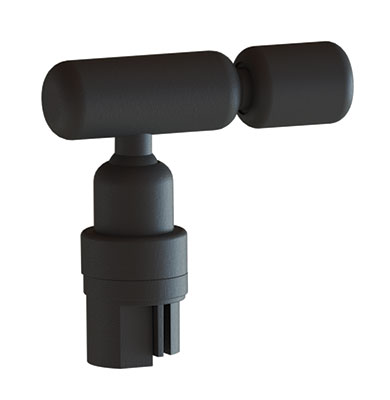

6. Gooseneck Fitting Part: MTL-GS-3K or MTL-GS-4K |
 |
 |
 |

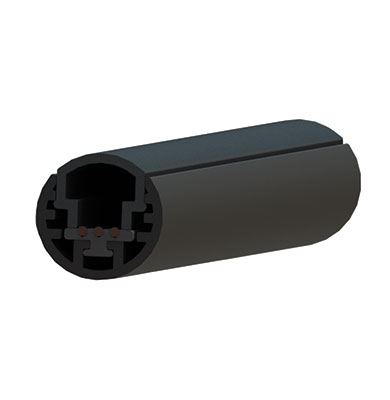

| 7. 20mm Extrusion & Infill Part: MTL-EI |
8. Trumpets & Lenses Part: MTL-LNS-CL / MO-W / N / C / F / D |

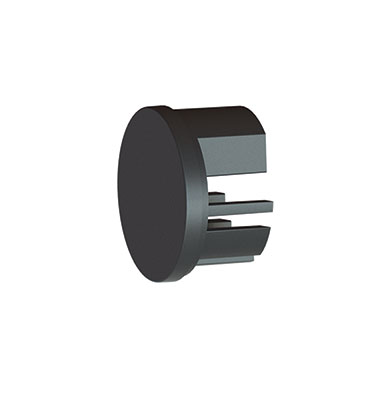

9. End Cap Part: MTL-EC |
 |
 |
 |

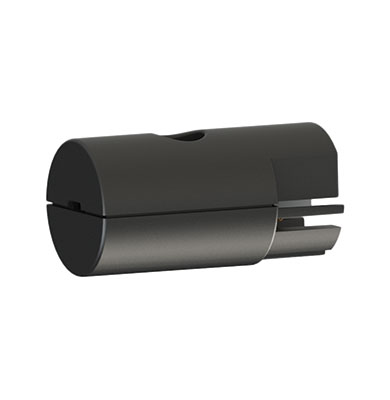

| 10. Power In Connector Part: MTL-PIC |

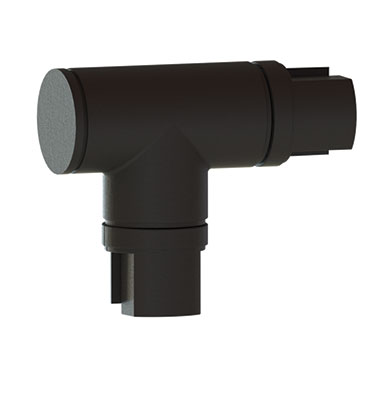

11. Rotating Corner - Left or Right Part: MTL-RC/L or MTL-RC/R |

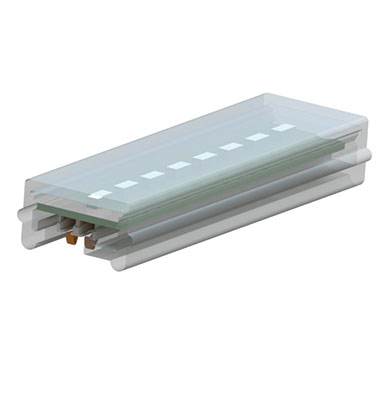

12. Linear Strip - 45,95 or 245mm Part: MTL-LS/45/95/245/ - 3K/4K |
 |
 |
|
| 13. Dimmer Plate Part: MTL-DP |

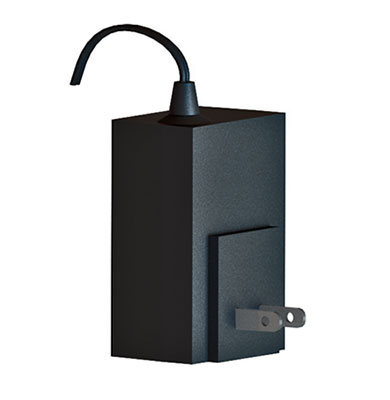

14. Power Supply Unit Part: MTL-PSU |
Ordering Notes
- Rotating corners are available in left and right handed versions. please suffix code with L or R to signify.
- Three types of mounting feet are available - round threaded as well as round and corner screw down.
- Two ranges of trumpets available. Classic (CL) & Contemporary (Co). Classic trumpets have clear or frosted lenses whilst contemporary are clear or diffused.
- Both trumpet ranges are available with wide or narrow angled lenses.
- Twistlock spot fittings, gooseneck, elbow and linear strip modules are available in both 3K & 4K color temperature variants.
- All parts are available in black, white or grey. please specify when ordering.
- power supply unit has fittings for UK, US and EU sockets. Can be used with driver & dimmer or individually if no dimming is required.
- Dimmer cover plates fit over standard single gang lighting pattress and are available in chrome, brass and brushed aluminum colors.
- We are constantly looking at ways to enhance MetroLED, so specifications are subject to change without notice.
